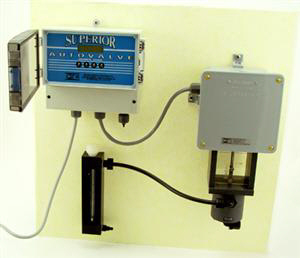

SUPERIORTM Series 2000 Auto-Valve
For use with all vacuum operated gas chlorinators & sulfonators

The new SUPERIOR AUTOVALVE is designed to give water and wastewater treatment facilities a true operator-friendly means of controlling the feed rate of chlorine or sulfur dioxide gas when treating varying water flow rates and/or residuals. Quick response times and a very rugged, powerful hi-torque DC stepper motor give unsurpassed accuracy and reliability.

Using a simple to understand, menu driven operator interface panel, the SUPERIOR AUTOVALVE can be installed in virtually any existing gas chlorination or sulfur dioxide system and be up and running in less than 30 minutes. Operators do not have to be instrument savvy, nor do they have to make any complicated calculations to set up or calibrate the AUTOVALVE. All that is required is a 4 to 20 milliamp signal from a water flow meter, a 110/220 VAC, 50/60 Hertz power supply, and a gas chlorinator (or sulfonator).

The user friendly menu system guides you through any calibration operation, although most installations will only require a minimum initial check to set maximum gas feed rates.

ALL "OPTIONS" ARE ALREADY BUILT-IN.
The Superior AutoValve is the only automatic gas control valve that has all three (3) control modes already built into the controller. There is no need to buy or install extra "modules" or "chips".

Maximum feed rate capacities up to 2000 PPD (40 KG/HR) are available.

COMPLETE AUTOVALVE SYSTEMS

MODEL NO. DESCRIPTION
AV-1 AUTOVALVE - 25, 50, 100 PPD (500. 1000, 2000 Gr/Hr.
AV-2 AUTOVALVE - to 200 PPD (5 Kg/Hr)
AV-5 AUTOVALVE - to 500 PPD (10 Kg/Hr)
AV-10 AUTOVALVE - to 1000 PPD (20 Kg/Hr)
AV-20 AUTOVALVE - to 2000 PPD (40 Kg/Hr)

INDIVIDUAL AUTOVALVE ASSEMBLIES

MODEL NO. DESCRIPTION
AVC-1 AUTOVALVE ELECTRONIC CONTROLLER
AVVL-1 AUTOVALVE MOTORIZED VALVE - to 100 PPD (2000 Gr/Hr)
AVVL-2 AUTOVALVE MOTORIZED VALVE - to 200 PPD (5 Kg/Hr)
AVVL-5 AUTOVALVE MOTORIZED VALVE - to 500 PPD (10 Kg/Hr)
AV-150 MOUNTING BOARD (PRE-DRILLED W/FASTENERS)
