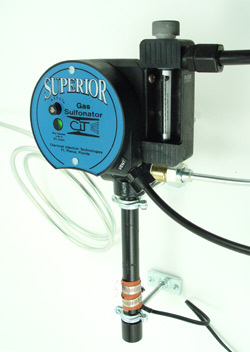

SDM Close Coupled Gas Sulfonator
SUPERIOR Gas Sulfonator Series SDM
Direct Cylinder Mounted - All Vacuum
The SUPERIOR™ Series SDM Gas Sulfonator is a state-of-the-art, vacuum-operated, solution feed type which mounts directly on a sulfur dioxide cylinder valve. The Sulfonator is mounted onto the sulphur dioxide cylinder valve using a very heavy-duty, positive yoke clamp connection. A sulfur dioxide gas flow meter panel is integrally mounted on the vacuum regulator and indicates the amount of sulfur dioxide being fed. Sulfur dioxide flow rate is manually adjusted and the design permits easy addition of a number of automatic flow rate control devices. A high efficiency, water operated ejector produces the vacuum necessary to operate the system. The ejector assembly contains a back-flow check valve system to prevent pressurized water from entering the Sulfonator. A spring-opposed diaphragm vacuum regulator controls the sulfur dioxide gas flow rate and also acts as the safety shut-off valve.
